- Stock: In Stock
- Model: SE-FM08
- Weight: 0.20kg

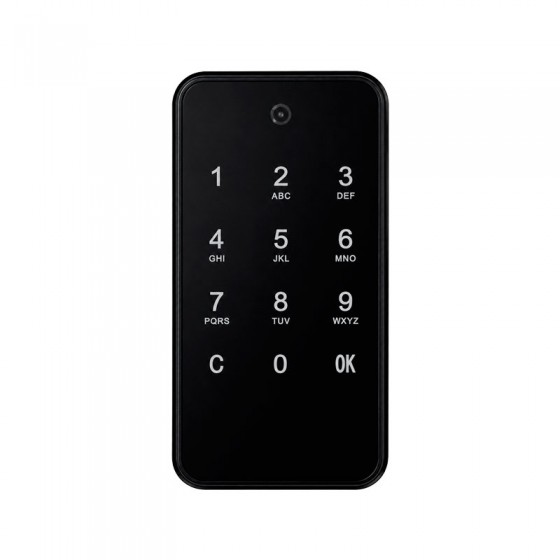

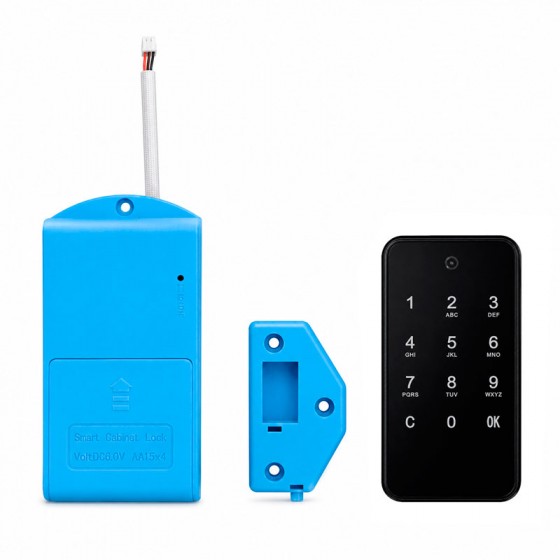

SE-FM08 TTLock Electronic Locker Lock with Mifare Card & PIN Code
The SE-FM08 is a practical digital electronic security lock, suitable for cabinets, lockers, storage compartments, offices, hotel applications, and other professional or residential uses.
The lock offers two unlocking methods: by Mifare RFID card or by personal PIN code via keypad, providing ease of use and enhanced access control.
It operates with 4 AA batteries and features a low-battery indication. It is suitable for installation on cabinets or lockers with a door thickness of 12 to 25 mm. In addition, it includes a Type-C emergency power input, allowing external power supply in case the batteries are depleted.
Key Features:
- Digital electronic security lock
- Unlocking by Mifare card or PIN code
- RFID frequency: 13.56 MHz
- Suitable for cabinets, lockers, and storage compartments
- Ideal for offices, schools, gyms, hotels, and storage areas
- Powered by 4 AA batteries
- Low-battery indication
- Type-C emergency external power input
- Suitable for cabinet/locker door thickness: 12–25 mm
- Operating temperature: -10°C to +50°C
- Operating humidity: 10%–90% RH
- Not waterproof – recommended for indoor use
Dimensions:
- Panel dimensions: 106 × 54 mm
- Lock body dimensions: 129 × 64 mm
- Lock tongue thickness: 12 mm
Note: Batteries and screws are not included in the package.
